China I-WOB UP3 Standard Angle Wobbler Sprinkler HT6314F

manufacturer supplier factory

Model: HT6314F
Price for WHOLESALE: FOB / CFR / DAP / DDP

Sample Price per Pack: Request Sample @ Cost Price

Shipping rate: please inquire to info@htcn.com

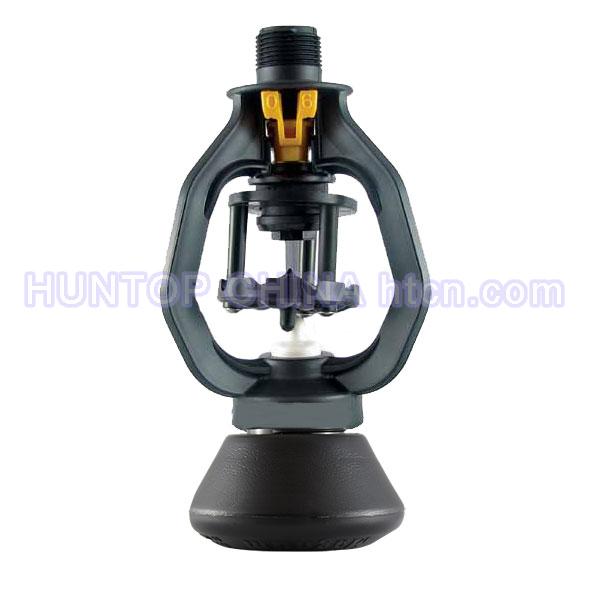

I-WOB UP3 Standard Angle Wobbler Sprinkler HT6314F

China manufacturer supplier factory

Zoom

I-WOB UP3 Standard Angle Wobbler Sprinkler HT6314F

View Prices

+ to Inquiry Cart

See Next Item ›››

Specification

Similar Senninger I-WOB UP3 Standard Angle Wobbler Sprinkler

Item No.: HT6314F

Size: 3/4" NPT Female

Low pressure operation: 10 to 20 psi (0.69 to 1.38 bar)

Sprinkler Type: Wobbler

Shoot distance: 12.9-15.9m(0.46m height);13.7-15.9m(0.92m height

Stream height:: 3.67 to 6.17 ft [1.12 to 1.88 m]

Flows: 0.42 to 2.18 gpm(95 to 495 L/hr)

Nozzle size: 7# Nozzle(2.78 mm)

Features:

The UP3 snap-in nozzle is easy to remove for cleaning or changing. To remove the nozzle simply pinch and pull.

Installation Guidelines:

The integrated base allows the applicator to be installed directly into a pressure regulator or onto a standard 3/4" NPT female connection with no special threads or fittings required.

Because of its off-center rotary action, it is necessary that the i-Wob be mounted with a minimum of 2 ft (0.6 m) reinforced flexiblehose above the applicator.

When using The One weight, never use another weight above the i-Wob.

If you are using a conventional weight above the i-Wob, only use a threaded weight weighing at least 1.5 lbs. (0.7 kg) but not exceeding 1 ft. (0.31 m) in length. Please note that using a slipover drop weight is prohibited as it maycause premature failure of the drop assembly.

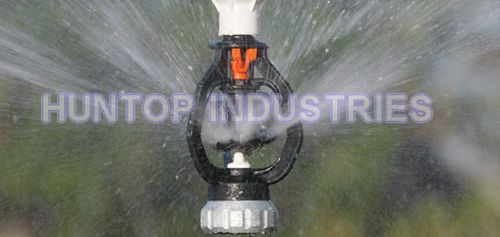

Irrigation Wobbler Sprinkler

China Huntop is leading China factory manufacturer supplier of I-WOB UP3 Standard Angle Wobbler Sprinkler HT6314F. Also manufacture supply wide range of garden tools watering irrigation products. Welcome to inquiry and order I-WOB UP3 Standard Angle Wobbler Sprinkler HT6314F.
