Automatic Water Driven Dosing Pump Chemical Injector Proportioner Device 0.1-2% HT6589A China manufacturer supplier
factory supplier

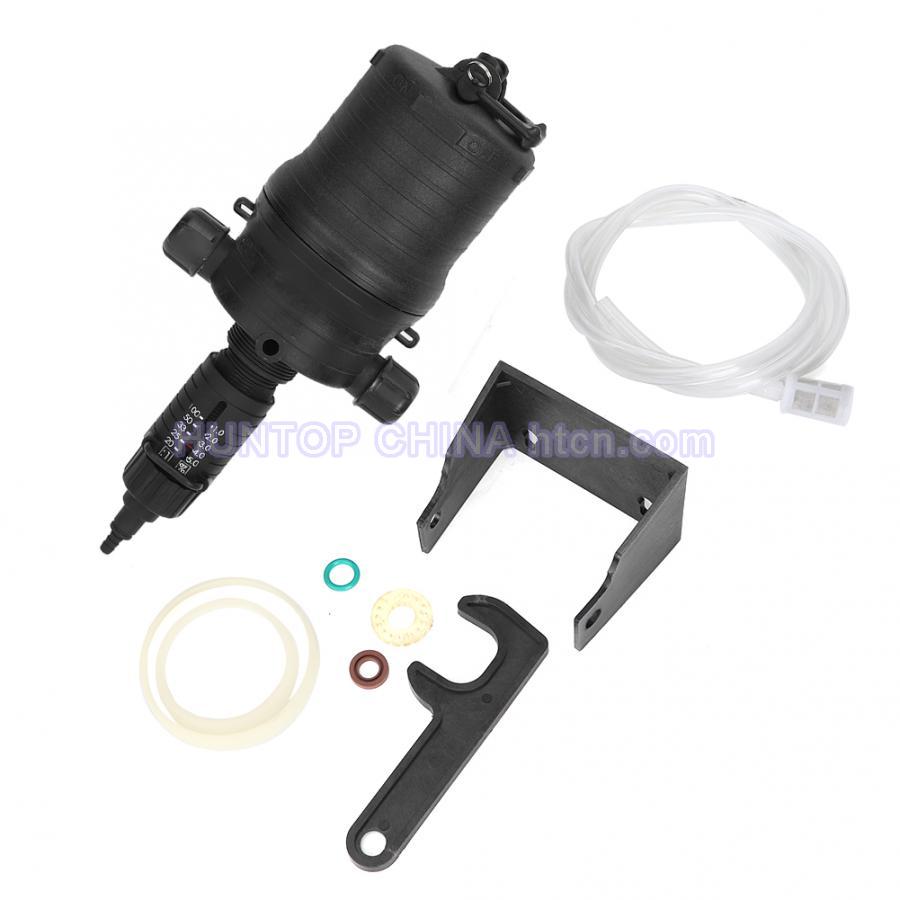

Automatic Chemical Proportioner Fertilizer Injector Proportioner Dosing Pump Mixer Feeder 0.1-2%

Item No.: HT6589A

Desc.: Water powered Chemical dosing pump, automatic chemical mixing pump, Livestock poultry husbandry medicator proportioner, nutrient dosing pump, irrigation fertigation injector pump

Mixing rate:

HT6589A: 0.2%-1%,

HT6589B: 1%-2%

HT6589C: 1%-5%

HT6589D: 2-10%

HT6589E: 5-10%

The Huntop automatic chemical mixing pump medicators dosing injectors can meet almost any medicating need from the largest of poultry and pig houses to the low flow needed to medicate day-old chicks and weaners, from growers using feeder tanks to those operating in hard-water environments.

The water medicator dosing injectors are widely used medicator in the world.

Accurate, dependable water proportioner for use in feeding antibiotics, vitamins, drugs and other liquid additives.

Adjustable, self-priming, easy to install.

Huntop manufactures wide range of chemical mixing doser injector that can be widely used:

1-Horticulture industry: the fertilization, storage and pest control for flowers, fruits and vegetables, etc.

2-Animal husbandry: the fixed-ratio health dosing for livestock and poultry, such as chickens, ducks, oxen and pigs.

3-Industrial field: water treatment, chemical engineering, metal processing, and fire control, etc.

4-Constant proportion dilution of special solvents such as smell removal solvent, cooling solvent and lubricating solvent;

5-Car-washing, printing, hospitals, wine industry and other industries.

More mixing rates: 0.2%-2%, 0.4%-4% and more options, 1%-10%, 2-10%, 1%-5%, etc.

Adjust the proportion of use:

Proportional pump can adjust the proportion of additives in water according to the actual situation to achieve the best effect of additives.

The specific methods are as follows:

1. Loosen the screw and remove the U-shaped adjusting lock from the upper part of the proportional pump.

2. Predict the proportion of liquid additives and water according to the scale ratio on the proportional pump.

Counterclockwise adjustment is to increase the proportion of liquid additives.

Clockwise adjustment is to reduce the proportion of liquid additives.

The percentage of proportional pump is calculated according to the final water production of the proportional pump of 100.

3. Turn the regulator until the hole above the U-shaped adjusting lock is inserted into the slot of the proportional pump.

4. Put the U-shaped adjusting lock into the upper groove of the proportional pump until it is locked with each other.

Welcome to check more water powered automatic doser medicator proportional injector.

China Huntop is leading China factory manufacturer supplier of Automatic Non-electric Chemical Proportioner Fertilizer Injector Mixing Dosing Pump 1-5% HT6589C. Also manufacture supply wide range of garden tools watering irrigation products. Welcome to inquiry and order Water powered Chemical Mixing pump Proportioner Chemical Injector Proportioner Dosing Device Automatic Diluent.

China Huntop is leading China factory manufacturer supplier of Automatic Water Driven Dosing Pump Chemical Injector Proportioner Device 0.1-2% HT6589A . Also manufacture supply wide range of garden tools watering irrigation products. Welcome to inquiry and order Automatic Water Driven Dosing Pump Chemical doser fertilizer Injector Proportioner poultry medicator 0.1-2%.
