Livestock Chemical Medicator Dosing Mixer Fertilizer Injector Pump - Water Powered

Item No.: HT6584B

Desc.: Chemical Mixer Dosing Pump, Automatic Medication Dosing Mixer, Fertigation doser pump, Dosing Jet Proportional Injector, Dosing Pump.

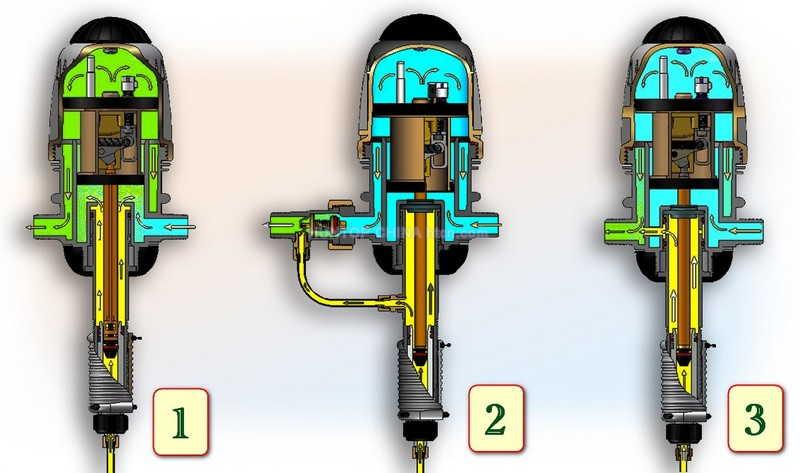

How the dosing pump works:
The medication dosing pump can be directly installed on the pipe line, driven by pipeline flow kinetic energy in the proportion of dosing pump work. The only power is the water pressure.

In water under pressure, under the drive of quantitative concentrated pharmaceutical inhalation in proportion, and then blended with water as power. Under the effect of water pressure, the fully mixed water and then be transported to the downstream. Inhalation medication (dosing) is always the same volume of water into the proportional dosing pump directly proportional to, and have nothing to do with the changes in the pipeline of water pressure and water. So as to realize direct flow mixing ratio and the additive.

Applications for chemical medication dosing injector pump:


Typical Applications:

• Acidification treatment;
• Pipeline cleaning;
• Equipment maintenance;
• Fertilizing;
• Soil disinfection;
• Livestock farming;
• Food, wine, beverage processing;
• Vehicle washing;
• Other add occasions need constant ratio.

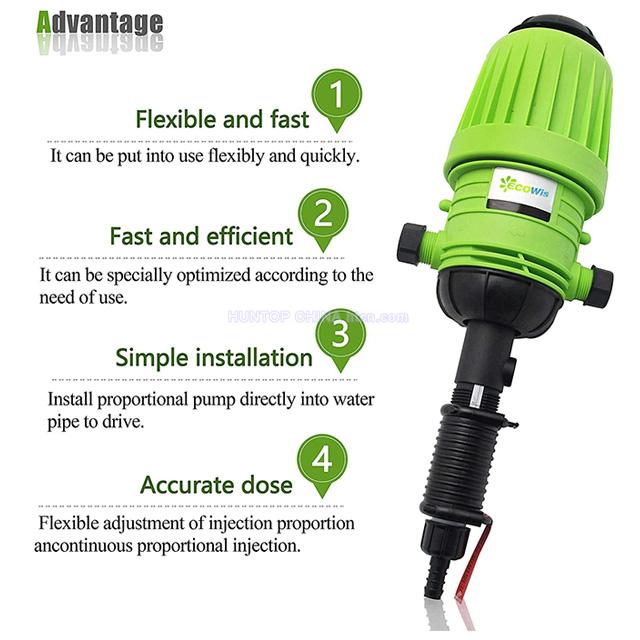

Features:

• Dosing pump driven by water flow only;
• Easy for installation and maintenance;
• Flexible dosing ratio adjustment;
• Anti-corrosion;
• Mounted directly on pipe, no electricity, and as the driving force to the working pressure.
• Easy to use, you can simply open water;
• Precise automatic mixing ratio of dosing, without water flow pressure fluctuations;
• Regardless of the water flowing into the pipeline flow and pressure changes, Huntop chemical fertilizer was always proportional to the amount of water flowing into the pipes, flexible and convenience;
• Complete quantitative dosing and mixing functions;
• Precise : quantitative volumetric hydraulic motor drive;
• Inhalation ( dosing ) : Continuous proportionally inject concentrated liquid;
• Regulation and control : the same proportion of water flow into accurate servo control;
• Automatic mixing : Water and liquid evenly inside the automatic mixing;

Flux Range: 20-3200L/h Mixing rate: 0.4-4% (0.2-2% is also available, HT6584A)
Working Pressure: 0.2-5kg/cm2
Input Dia./Output Dia. 3/4"
Packing: 1pc/color box; 6pcs/Ctn
